Schéma de câblage et exemple de code

Voici comment connecter le Module matrice LED MAX7219 Bleu à un Arduino UNO ou à un ESP32, avec un exemple de sketch que tu peux téléverser directement.

Démo d'affichage matrice LED 8x8 MAX7219

Ce projet montre comment piloter une matrice LED 8x8 à l'aide du circuit intégré pilote MAX7219. Le sketch réveille la matrice, règle un niveau de luminosité confortable et anime un point rebondissant sur toutes les lignes et colonnes.

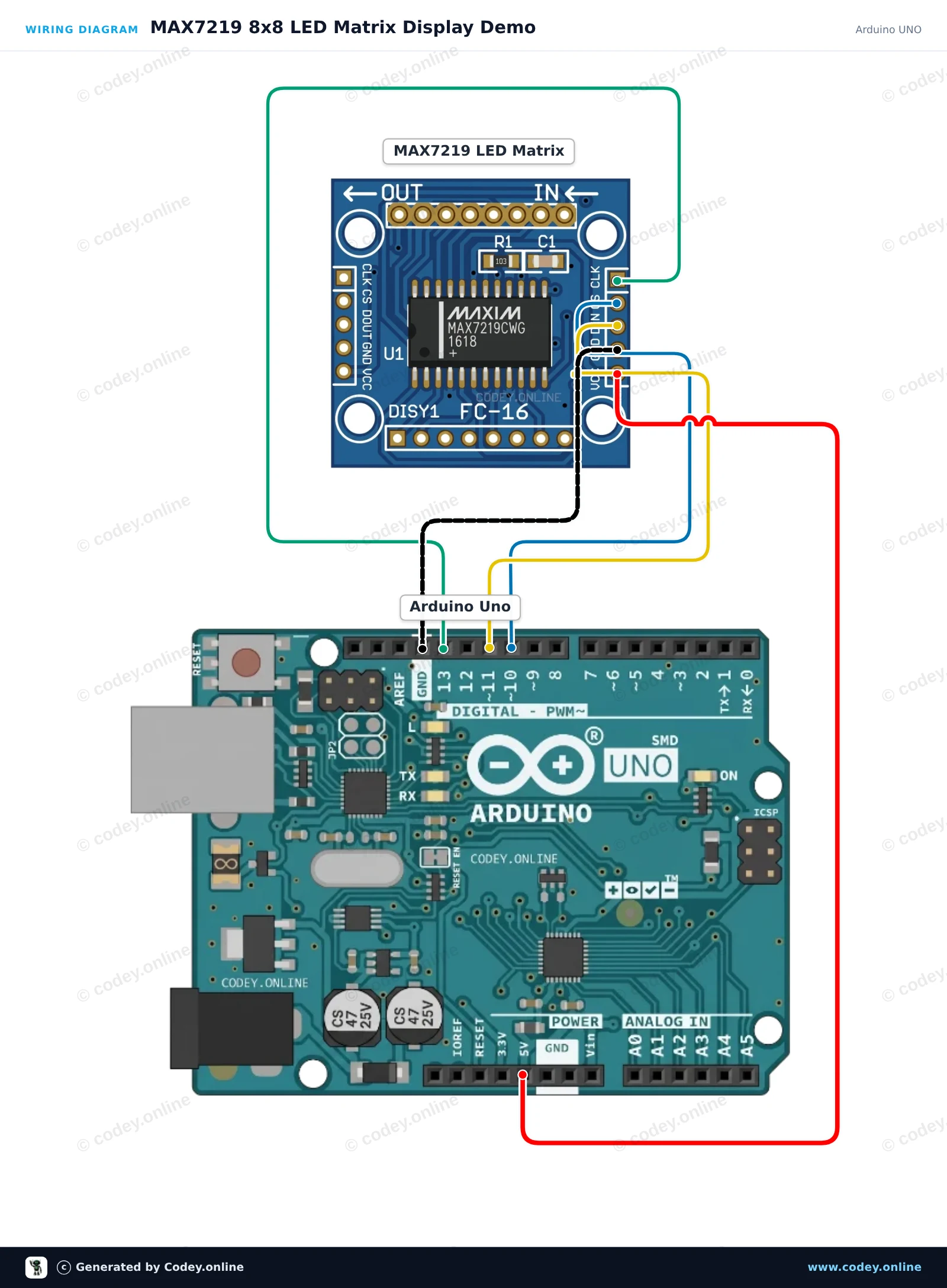

Schéma de câblage : Module matrice LED MAX7219 Bleu sur un Arduino UNO
Schéma de câblage · Cliquez pour agrandir

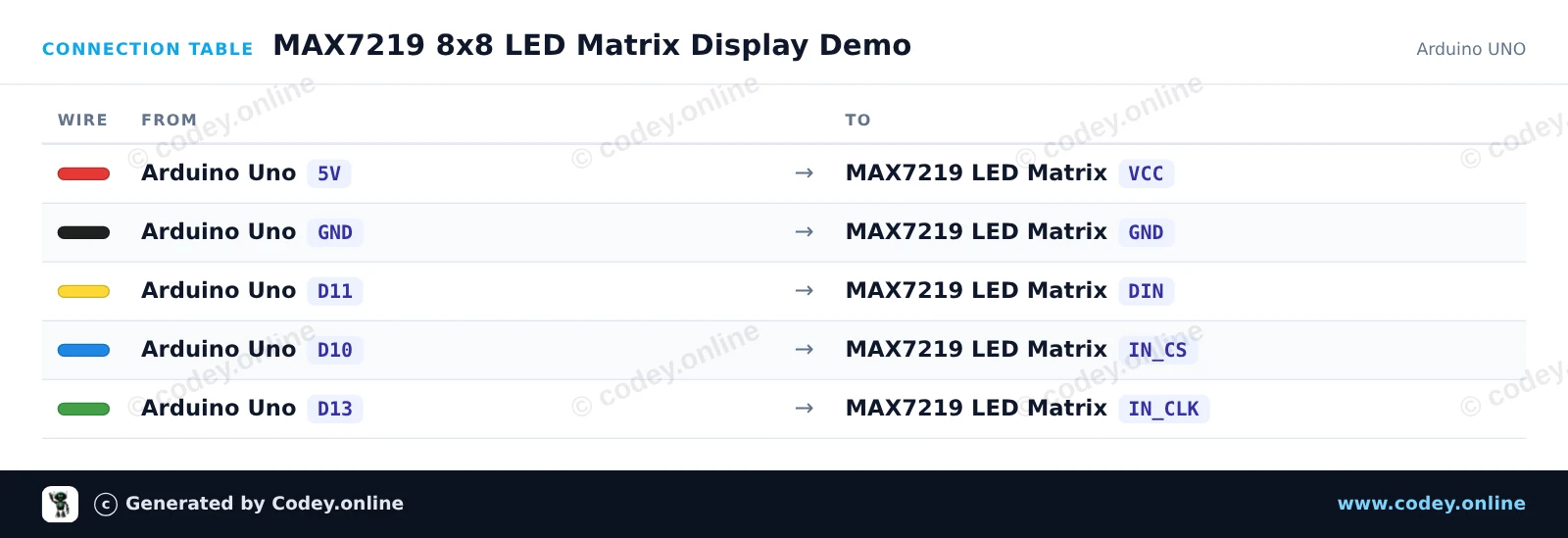

Tableau de câblage : Module matrice LED MAX7219 Bleu sur un Arduino UNO
Tableau de câblage · Cliquez pour agrandir
MAX7219_8x8_LED_Matrix_Display_Demo.ino · compilé et testé
/*
 * ==================================================================
 *  Generated by Codey.online  —  https://www.codey.online
 * ==================================================================
 *  Project   : MAX7219 8x8 LED Matrix Display Demo
 *  Board     : Arduino UNO (arduino:avr:uno)
 *  Parts     : LED Matrix Module MAX7219
 *  Libraries : LedControl 1.0.6
 *
 *  Codey Online is an AI-powered browser IDE for Arduino and ESP32.
 *  Describe your project and Codey writes the code, draws the wiring
 *  diagram and uploads it to your board, straight from the browser.
 *  This code is free to use, modify and share, without warranty.
 * ==================================================================
 */

#include <LedControl.h>

const int DIN_PIN = 11;
const int CLK_PIN = 13;
const int CS_PIN  = 10;

// Create LedControl instance: LedControl(DIN, CLK, CS, number_of_matrices)
LedControl lc = LedControl(DIN_PIN, CLK_PIN, CS_PIN, 1);

// 8x8 bitmap for a smile icon
const byte SMILE[8] = {
  B00111100,
  B01000010,
  B10100101,
  B10000001,
  B10100101,
  B10011001,
  B01000010,
  B00111100
};

// 8x8 bitmap for a heart icon
const byte HEART[8] = {
  B00000000,
  B01100110,
  B11111111,
  B11111111,
  B01111110,
  B00111100,
  B00011000,
  B00000000
};

void drawBitmap(const byte bitmap[]) {
  for (int row = 0; row < 8; row++) {
    lc.setRow(0, row, bitmap[row]);
  }
}

void setup() {
  Serial.begin(115200);

  // Wake up MAX7219 from power-saving mode
  lc.shutdown(0, false);
  // Set medium brightness (0 to 15)
  lc.setIntensity(0, 6);
  // Clear the display
  lc.clearDisplay(0);

  Serial.println(F("MAX7219 Matrix initialized!"));
}

void loop() {
  // Display Heart
  drawBitmap(HEART);
  delay(1500);

  // Display Smile
  drawBitmap(SMILE);
  delay(1500);

  // Pixel sweep effect
  lc.clearDisplay(0);
  for (int row = 0; row < 8; row++) {
    for (int col = 0; col < 8; col++) {
      lc.setLed(0, row, col, true);
      delay(25);
      lc.setLed(0, row, col, false);
    }
  }
}

Bibliothèques nécessaires : LedControl 1.0.6

Wiring diagram and example code generated by Codey.online — https://www.codey.online

Afficheur matriciel LED MAX7219 avec ESP32

Ce projet affiche des motifs et des animations personnalisés sur un module matrice LED MAX7219 8x8 à l’aide du SPI matériel. L’ESP32 communique avec le driver via GPIO 23 (MOSI/DIN), GPIO 18 (SCK/CLK) et GPIO 5 (CS), et alimente directement l’afficheur depuis la broche 5V VIN.

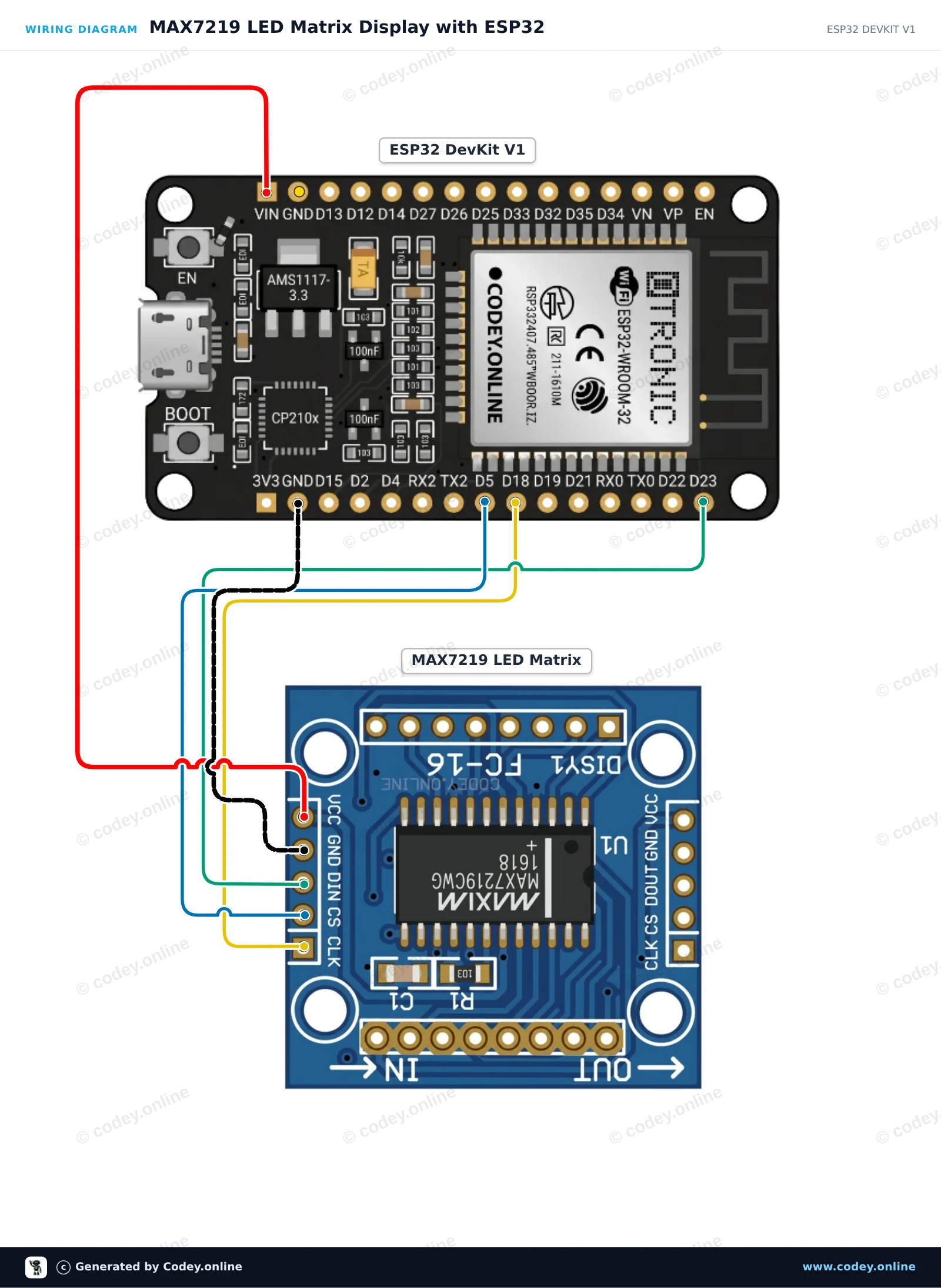

Schéma de câblage : Module matrice LED MAX7219 Bleu sur un ESP32 DevKit V1
Schéma de câblage · Cliquez pour agrandir

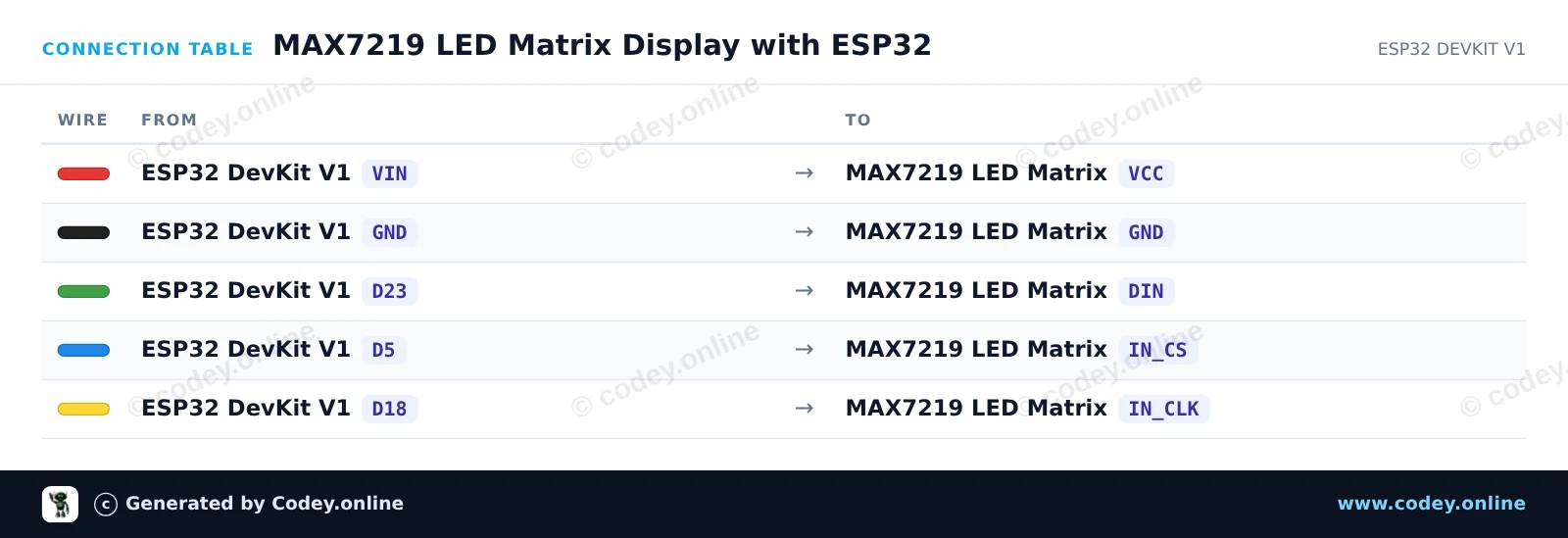

Tableau de câblage : Module matrice LED MAX7219 Bleu sur un ESP32 DevKit V1
Tableau de câblage · Cliquez pour agrandir
MAX7219_LED_Matrix_Display_with_ESP32.ino · compilé et testé
/*
 * ==================================================================
 *  Generated by Codey.online  —  https://www.codey.online
 * ==================================================================
 *  Project   : MAX7219 LED Matrix Display with ESP32
 *  Board     : ESP32 DEVKIT V1 (esp32:esp32:esp32doit-devkit-v1)
 *  Parts     : LED Matrix Module MAX7219
 *  Libraries : none (built-in)
 *
 *  Codey Online is an AI-powered browser IDE for Arduino and ESP32.
 *  Describe your project and Codey writes the code, draws the wiring
 *  diagram and uploads it to your board, straight from the browser.
 *  This code is free to use, modify and share, without warranty.
 * ==================================================================
 */

#include <SPI.h>

const int CS_PIN = 5;

// MAX7219 register addresses
const byte REG_NOOP      = 0x00;
const byte REG_DECODE    = 0x09;
const byte REG_INTENSITY = 0x0A;
const byte REG_SCANLIMIT = 0x0B;
const byte REG_SHUTDOWN  = 0x0C;
const byte REG_DISPTEST  = 0x0F;

// Bitmaps for 8x8 graphics
const byte smile[8] = {
  0b00111100,
  0b01000010,
  0b10100101,
  0b10000001,
  0b10100101,
  0b10011001,
  0b01000010,
  0b00111100
};

const byte heart[8] = {
  0b00000000,
  0b01100110,
  0b11111111,
  0b11111111,
  0b11111111,
  0b01111110,
  0b00111100,
  0b00011000
};

void writeRegister(byte reg, byte data) {
  digitalWrite(CS_PIN, LOW);
  SPI.transfer(reg);
  SPI.transfer(data);
  digitalWrite(CS_PIN, HIGH);
}

void clearDisplay() {
  for (byte row = 1; row <= 8; row++) {
    writeRegister(row, 0x00);
  }
}

void drawBitmap(const byte bitmap[8]) {
  for (byte row = 0; row < 8; row++) {
    writeRegister(row + 1, bitmap[row]);
  }
}

void setup() {
  pinMode(CS_PIN, OUTPUT);
  digitalWrite(CS_PIN, HIGH);

  // Initialize hardware SPI (VSPI: SCK=18, MOSI=23)
  SPI.begin();

  // Configure MAX7219
  writeRegister(REG_DISPTEST, 0x00);  // Normal operation
  writeRegister(REG_SCANLIMIT, 0x07); // Scan all 8 digits/rows
  writeRegister(REG_DECODE, 0x00);    // No BCD decoding (raw matrix mode)
  writeRegister(REG_INTENSITY, 0x04); // Brightness (0x00 to 0x0F)
  writeRegister(REG_SHUTDOWN, 0x01);  // Wake up module

  clearDisplay();
}

void loop() {
  // Display smiley face
  drawBitmap(smile);
  delay(2000);

  // Display heart
  drawBitmap(heart);
  delay(2000);

  // Row sweep animation
  clearDisplay();
  for (byte i = 1; i <= 8; i++) {
    writeRegister(i, 0xFF);
    delay(100);
  }
  for (byte i = 1; i <= 8; i++) {
    writeRegister(i, 0x00);
    delay(100);
  }
}

Wiring diagram and example code generated by Codey.online — https://www.codey.online

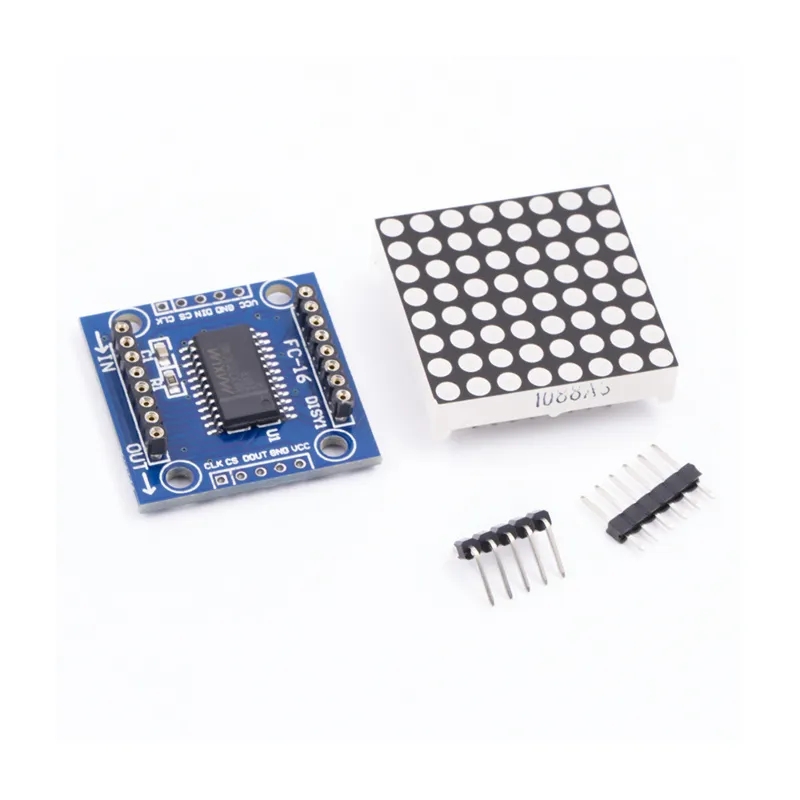

Module matrice LED MAX7219 Bleu

Le MAX7219 est un circuit intégré utilisé pour piloter des panneaux LED à cathode commune, des afficheurs à 7 segments et des indicateurs de niveau communiquant via l'interface SPI. Cette carte dispose d'un affichage LED matriciel 8x8. Plusieurs modules peuvent être chaînés à l'aide de connecteurs header.

Spécifications :

  • écran à cathode commune 8x8
  • Tension de fonctionnement : 5V
  • Courant de fonctionnement : 250mA (MAX)
  • Tension logique de l'interface : 5V
  • Type d'interface : SPI
  • Connexions : VCC, GND, DIN, CS, CLK
  • Compatibilité : Compatible avec Arduino UNO R3 / Arduino Mega2560.
  • Bibliothèques pour Arduino : Max72xxPanel et Adafruit_GFX
  • Couleur de la LED : bleu
  • Taille de la LED : 5 mm
  • Nombre de nœuds chaînables : 32 (MAX)
  • IC pilote : MAX7219
  • Très adapté aux projets Arduino DIY
  • Dimensions : 3,2 cm x 3,2 cm x 1,3 cm
  • trous de fixation 4x3 mm
  • matrice 8x8
  • driver MAX7219
  • interface SPI
  • compatible Arduino

Pourquoi choisir ce produit ?

  • 8x8 display – Écran matriciel LED compact pour projets.
  • Connexion SPI – Fonctionne via l’interface SPI.
  • Conception empilable – Possibilité de relier plusieurs modules.
  • Compatible Arduino – Convient pour UNO R3 et Mega2560.
  • Bibliothèques pratiques – Max72xxPanel et Adafruit_GFX incluses.
Spécifications
Dimensions3,2 cm x 3,2 cm x 1,3 cm
Tension d'alimentation5V
CompatibilitéCompatible avec Arduino UNO R3 / Arduino Mega2560
IC piloteMAX7219
Tension logique de l'interface5V
Type d'interfaceSPI
ConnexionsVCC, GND, DIN, CS, CLK
Bibliothèques pour ArduinoMax72xxPanel et Adafruit_GFX
Couleur de la LEDbleu
Taille de la LED5 mm
Nombre de nœuds chaînables32 (MAX)
Type d'écranécran à cathode commune
Trous de fixation4 x 3 mm
Courant de fonctionnement250mA (MAX)
