Schéma de câblage et exemple de code

Voici comment connecter le Mini écran OLED blanc de 0,91 pouce 128x32 I2C à un Arduino UNO ou à un ESP32, avec un exemple de sketch que tu peux téléverser directement.

Démo d'écran OLED I2C de 0,91 pouce

Ce projet montre comment initialiser et afficher du texte ainsi qu'un compteur en temps réel sur un écran OLED I2C 128x32 de 0,91 pouce. L'écran se connecte directement aux broches I2C de l'Arduino Uno (A4 et A5) et se met à jour en continu.

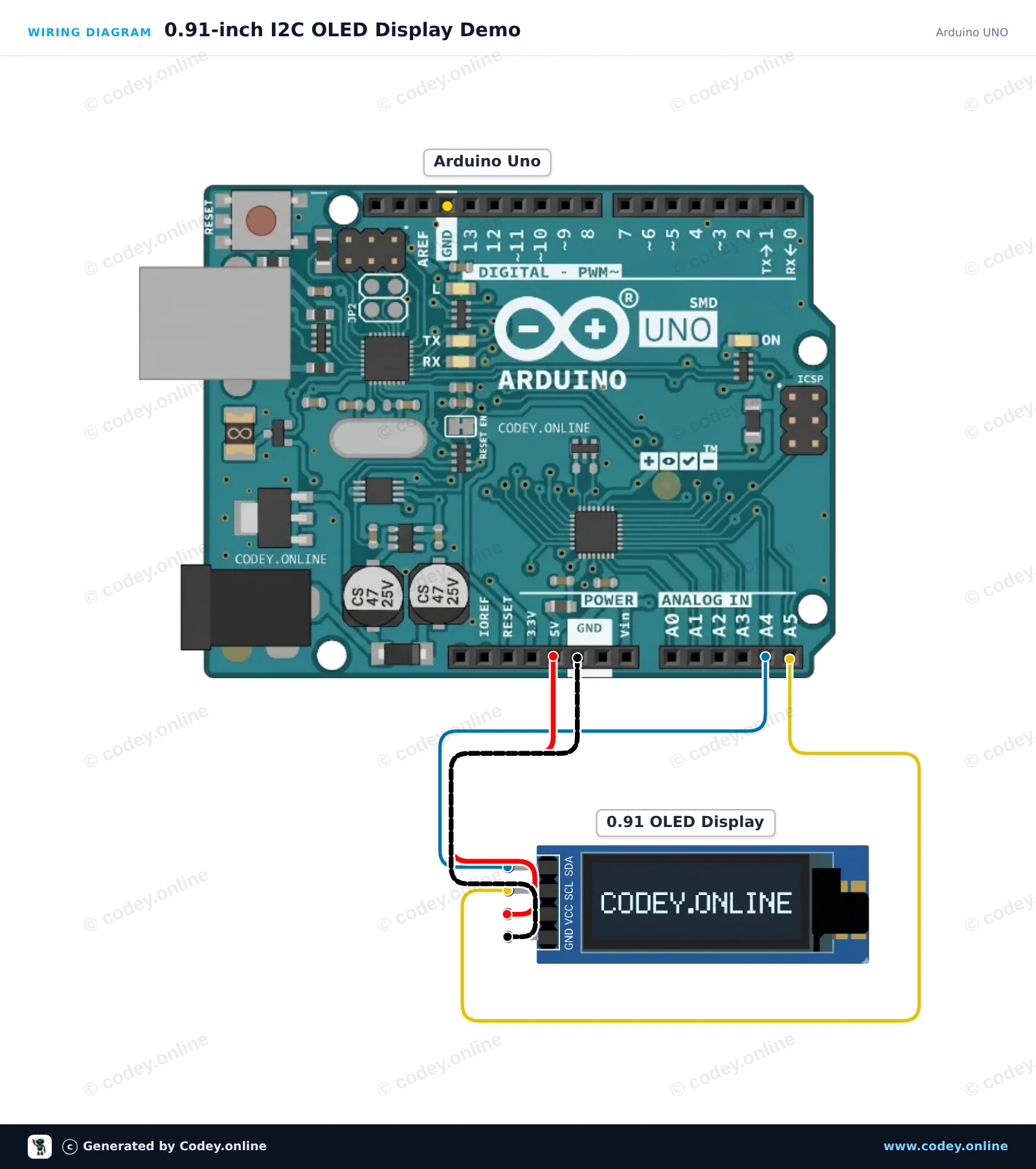

Schéma de câblage : Mini écran OLED blanc de 0,91 pouce 128x32 I2C sur un Arduino UNO
Schéma de câblage · Cliquez pour agrandir

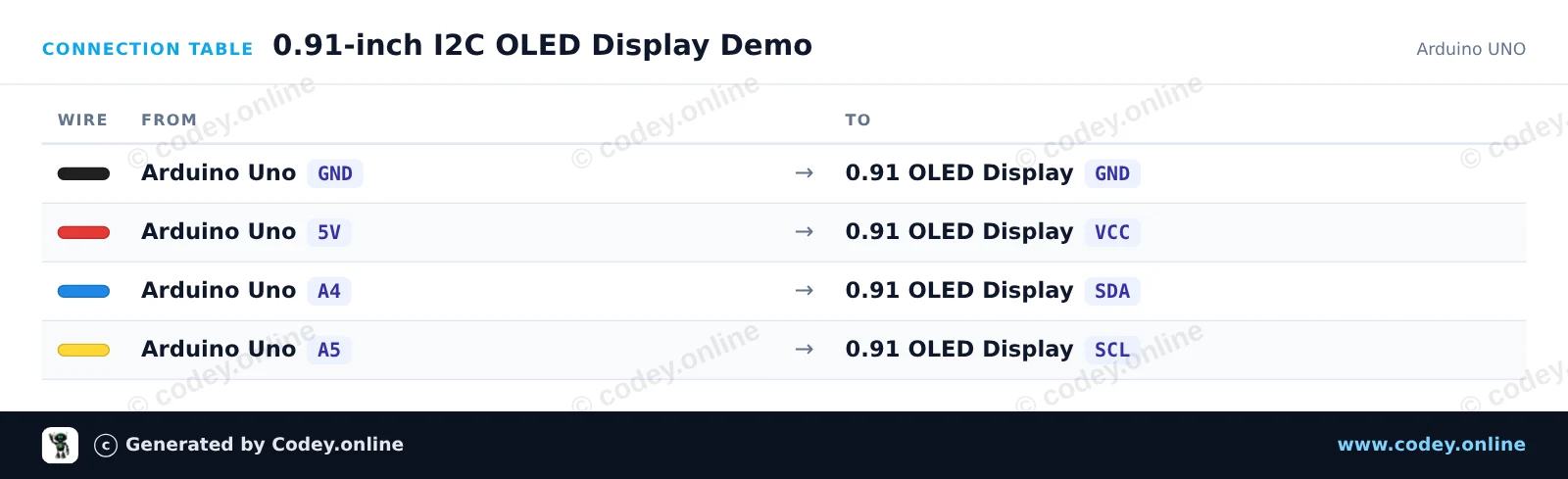

Tableau de câblage : Mini écran OLED blanc de 0,91 pouce 128x32 I2C sur un Arduino UNO
Tableau de câblage · Cliquez pour agrandir
0_91_inch_I2C_OLED_Display_Demo.ino · compilé et testé
/*
 * ==================================================================
 *  Generated by Codey.online  —  https://www.codey.online
 * ==================================================================
 *  Project   : 0.91-inch I2C OLED Display Demo
 *  Board     : Arduino UNO (arduino:avr:uno)
 *  Parts     : OLED Display 0.91 inch
 *  Libraries : U8g2 2.36.19
 *
 *  Codey Online is an AI-powered browser IDE for Arduino and ESP32.
 *  Describe your project and Codey writes the code, draws the wiring
 *  diagram and uploads it to your board, straight from the browser.
 *  This code is free to use, modify and share, without warranty.
 * ==================================================================
 */

#include <Wire.h>
#include <U8g2lib.h>

U8G2_SSD1306_128X32_UNIVISION_F_HW_I2C u8g2(U8G2_R0, U8X8_PIN_NONE);

unsigned long counter = 0;

void setup() {
  u8g2.begin();
}

void loop() {
  u8g2.clearBuffer();

  u8g2.setFont(u8g2_font_6x10_tf);
  u8g2.drawStr(0, 10, "0.91\" OLED Demo");

  u8g2.setFont(u8g2_font_ncenB08_tr);
  u8g2.setCursor(0, 26);
  u8g2.print(F("Count: "));
  u8g2.print(counter);

  u8g2.sendBuffer();

  counter++;
  delay(500);
}

Bibliothèques nécessaires : U8g2 2.36.19

Wiring diagram and example code generated by Codey.online — https://www.codey.online

Démo d'écran OLED 0.91 pouce pour ESP32

Ce projet affiche du texte et un compteur qui défile sur un écran OLED I2C 128x32 de 0.91 pouce avec l'ESP32. Connectez l'écran directement aux broches I2C par défaut (GPIO 21 et 22) et alimentez-le en 3.3V. Téléversez le sketch et regardez l'écran se rafraîchir chaque seconde.

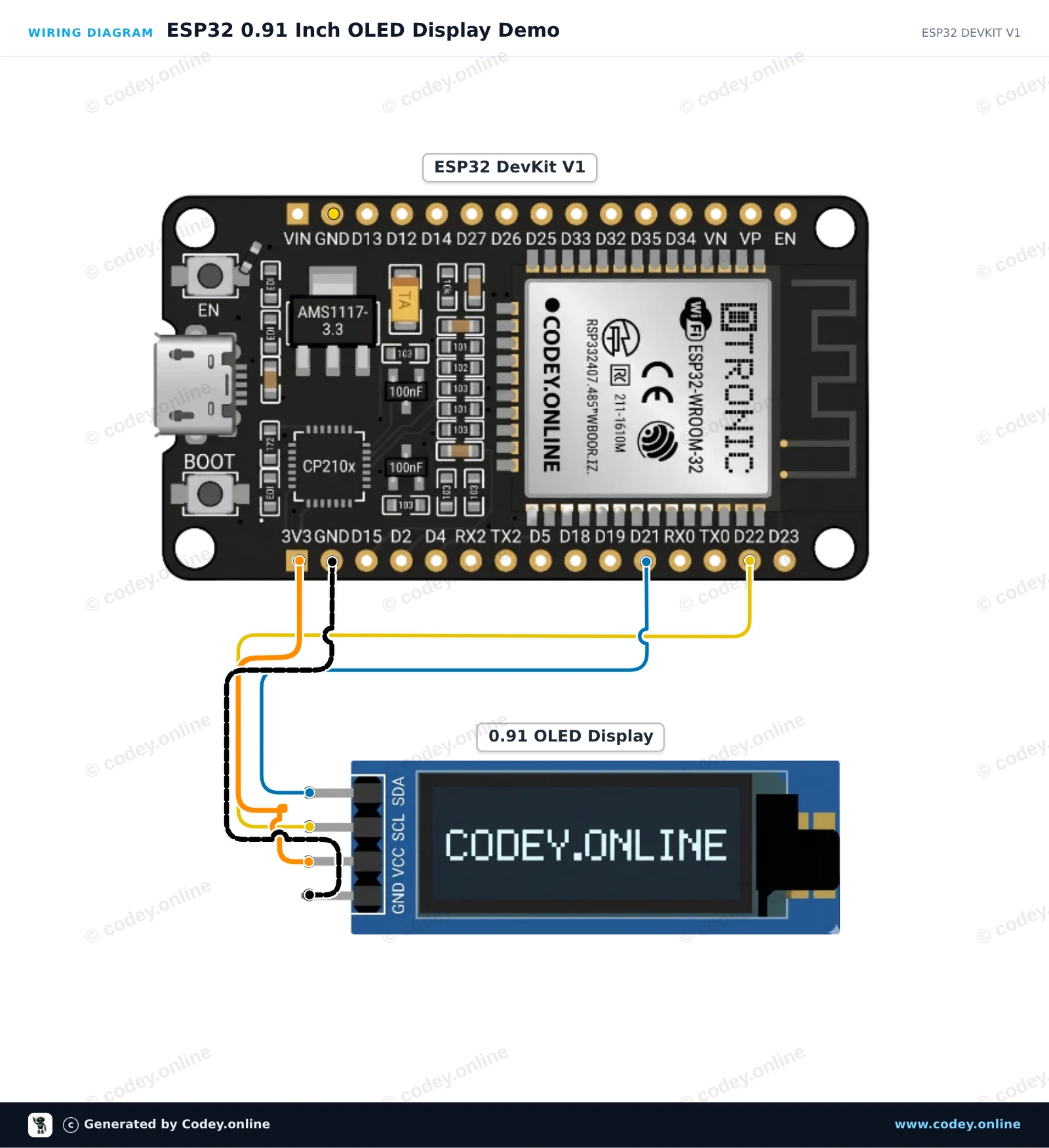

Schéma de câblage : Mini écran OLED blanc de 0,91 pouce 128x32 I2C sur un ESP32 DevKit V1
Schéma de câblage · Cliquez pour agrandir

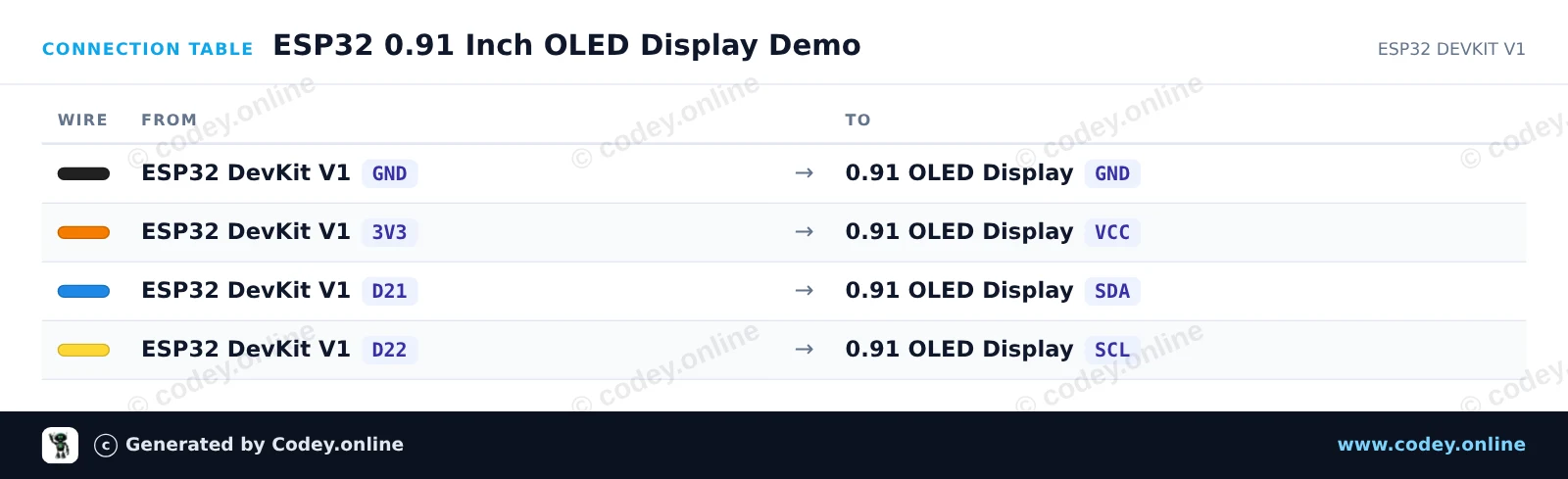

Tableau de câblage : Mini écran OLED blanc de 0,91 pouce 128x32 I2C sur un ESP32 DevKit V1
Tableau de câblage · Cliquez pour agrandir
ESP32_0_91_Inch_OLED_Display_Demo.ino · compilé et testé
/*
 * ==================================================================
 *  Generated by Codey.online  —  https://www.codey.online
 * ==================================================================
 *  Project   : ESP32 0.91 Inch OLED Display Demo
 *  Board     : ESP32 DEVKIT V1 (esp32:esp32:esp32doit-devkit-v1)
 *  Parts     : OLED Display 0.91 inch
 *  Libraries : Adafruit SSD1306 2.5.16, Adafruit GFX Library 1.12.6
 *
 *  Codey Online is an AI-powered browser IDE for Arduino and ESP32.
 *  Describe your project and Codey writes the code, draws the wiring
 *  diagram and uploads it to your board, straight from the browser.
 *  This code is free to use, modify and share, without warranty.
 * ==================================================================
 */

#include <Wire.h>
#include <Adafruit_GFX.h>
#include <Adafruit_SSD1306.h>

#define SCREEN_WIDTH 128
#define SCREEN_HEIGHT 32
#define OLED_RESET -1
#define SCREEN_ADDRESS 0x3C

Adafruit_SSD1306 display(SCREEN_WIDTH, SCREEN_HEIGHT, &Wire, OLED_RESET);

int counter = 0;

void setup() {
  Serial.begin(115200);

  // Initialize I2C on ESP32 default pins: SDA (GPIO 21), SCL (GPIO 22)
  Wire.begin(21, 22);

  if (!display.begin(SSD1306_SWITCHCAPVCC, SCREEN_ADDRESS)) {
    Serial.println(F("SSD1306 allocation failed"));
    while (true);
  }

  display.clearDisplay();
  display.setTextSize(1);
  display.setTextColor(SSD1306_WHITE);
  display.setCursor(0, 0);
  display.println(F("ESP32 OLED Demo"));
  display.display();
  delay(2000);
}

void loop() {
  display.clearDisplay();

  display.setTextSize(1);
  display.setTextColor(SSD1306_WHITE);
  display.setCursor(0, 0);
  display.println(F("Hello from ESP32!"));

  display.setTextSize(2);
  display.setCursor(0, 14);
  display.print(F("Count: "));
  display.print(counter);

  display.display();

  counter++;
  delay(1000);
}

Bibliothèques nécessaires : Adafruit SSD1306 2.5.16, Adafruit GFX Library 1.12.6

Wiring diagram and example code generated by Codey.online — https://www.codey.online

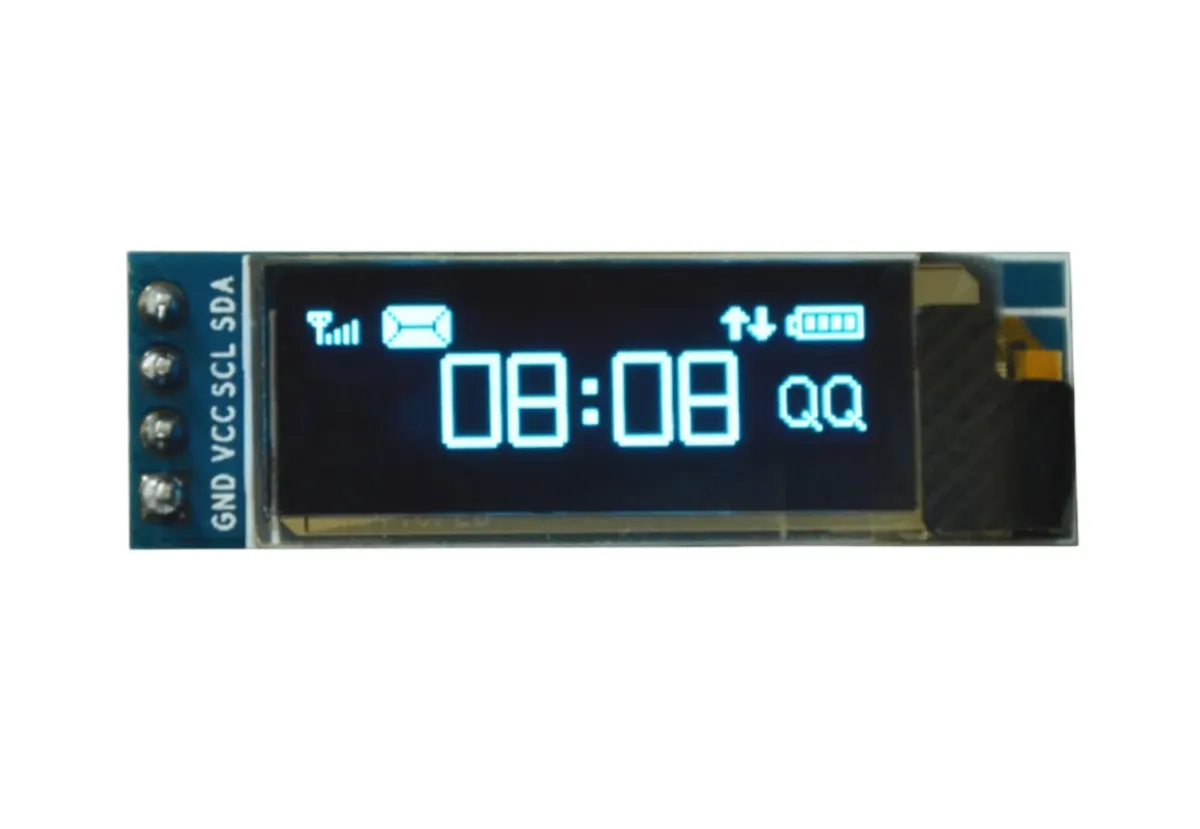

Mini écran OLED blanc de 0,91 pouce 128x32 I2C

Petit écran OLED mini de 0,91 pouce. Image d’une netteté exceptionnelle avec une résolution de 128x32 pixels.

Fonctionne avec une alimentation de 3v-5v. Idéal pour les projets Arduino ou ESP32 / ESP8266.

Les dimensions de cette carte sont de seulement 38 x 12 x 3,3 mm.

voir ici le schéma de câblage et le code d’exemple >>>

FICHE TECHNIQUE SSD1306

Dimensions
Longueur : 3,8 cm
Largeur : 1,2 cm
Hauteur : 0,33 cm

  • 0,91 inch
  • 38 x 12 x 3,3 mm
  • 3v-5v
  • SSD1306
La lecture charge la vidéo depuis YouTube.

Pourquoi choisir ce produit ?

  • Affichage d'une netteté exceptionnelle – Résolution de 128x32 pixels.
  • Convient aux projets – Idéal pour Arduino et ESP32/ESP8266.
  • Format compact – Seulement 38 x 12 x 3,3 mm.
  • Large plage d'alimentation – Fonctionne sur 3V-5V.
Spécifications
Dimensions38 x 12 x 3,3 mm
Largeur1,2 cm
Résolution128x32 pixels
InterfaceI2C
Convient pourArduino / ESP32 / ESP8266
Longueur3,8 cm
Tension d'alimentation3v-5v
Hauteur0,33 cm
Format0,91 inch
IC piloteSSD1306
