Voici comment connecter le Mini écran OLED bleu 0.91 inch 128x32 I2C à un Arduino UNO ou à un ESP32, avec un exemple de sketch que tu peux téléverser directement.

Démo d’écran OLED I2C 0,91 pouce

Ce projet montre comment connecter et afficher du texte ainsi qu’un compteur actif sur un écran OLED I2C de 0,91 pouce (128x32). L’écran se connecte directement aux broches I2C de l’Arduino Uno (A4 pour SDA, A5 pour SCL). Une fois sous tension, l’écran affiche une bannière de titre et met à jour un compteur de secondes en continu.

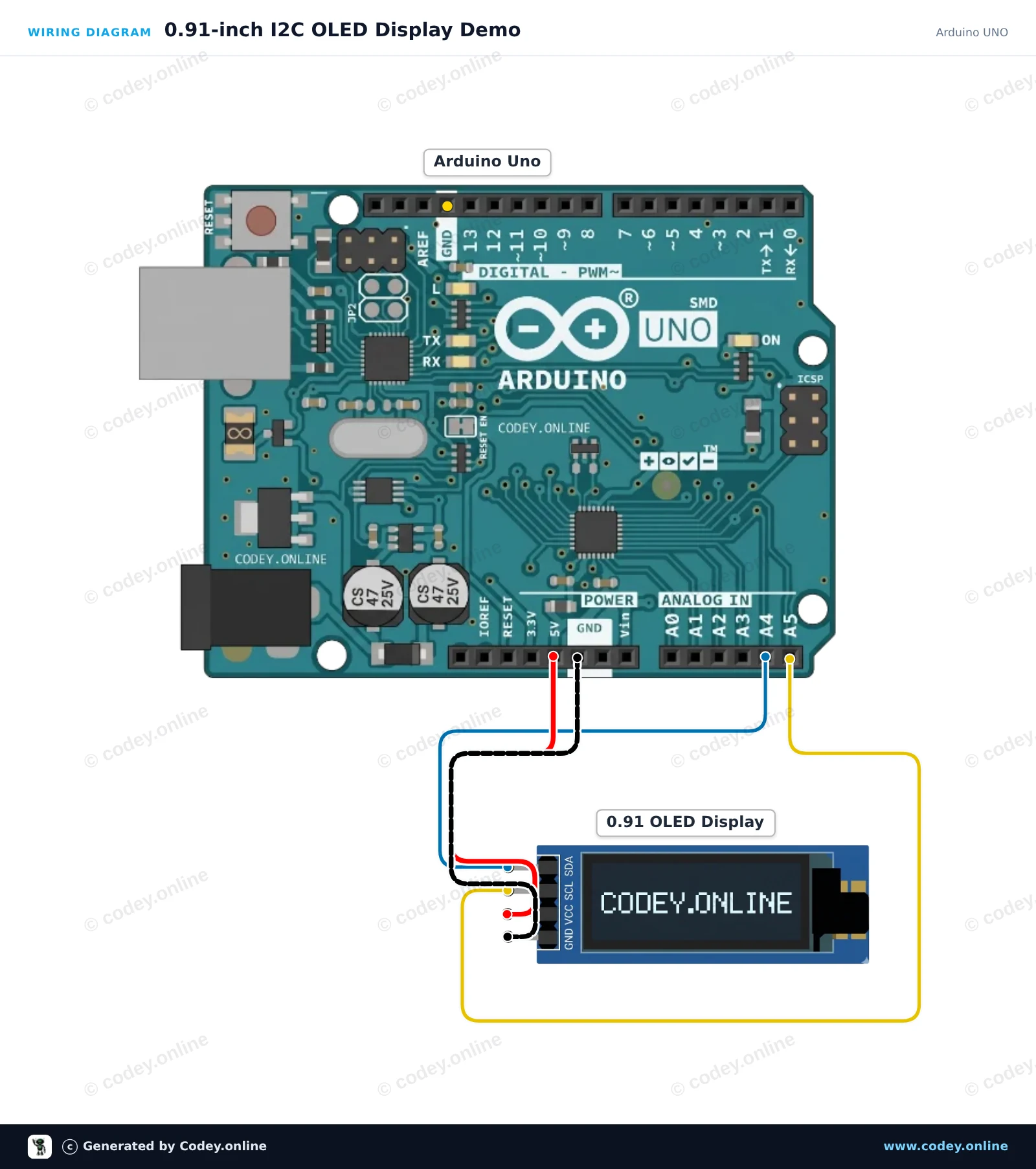

Schéma de câblage : Mini écran OLED bleu 0.91 inch 128x32 I2C sur un Arduino UNO
Schéma de câblage · Cliquez pour agrandir

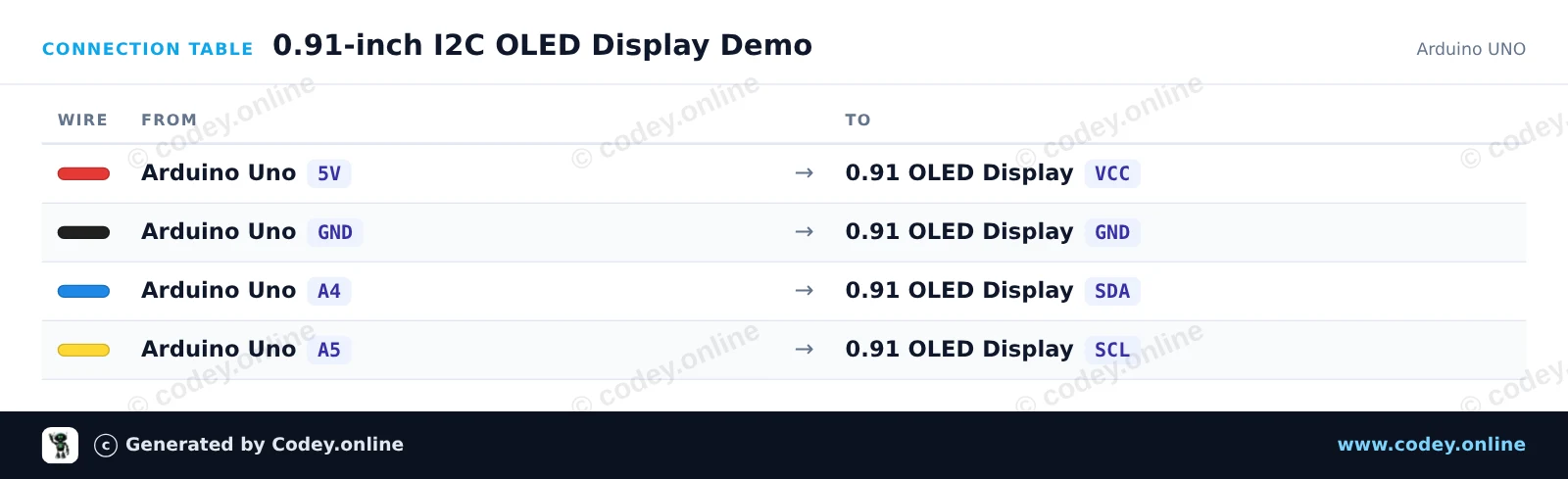

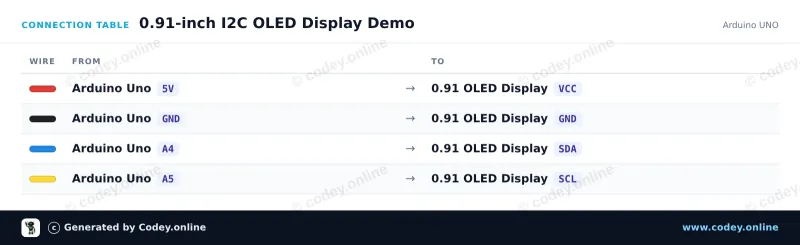

Tableau de câblage : Mini écran OLED bleu 0.91 inch 128x32 I2C sur un Arduino UNO
Tableau de câblage · Cliquez pour agrandir
0_91_inch_I2C_OLED_Display_Demo.ino · compilé et testé
/*
 * ==================================================================
 *  Generated by Codey.online  —  https://www.codey.online
 * ==================================================================
 *  Project   : 0.91-inch I2C OLED Display Demo
 *  Board     : Arduino UNO (arduino:avr:uno)
 *  Parts     : OLED Display 0.91 inch
 *  Libraries : U8g2 2.36.19
 *
 *  Codey Online is an AI-powered browser IDE for Arduino and ESP32.
 *  Describe your project and Codey writes the code, draws the wiring
 *  diagram and uploads it to your board, straight from the browser.
 *  This code is free to use, modify and share, without warranty.
 * ==================================================================
 */

#include <Wire.h>
#include <U8g2lib.h>

// 0.91" OLED display is a 128x32 SSD1306 I2C module
U8G2_SSD1306_128X32_UNIVISION_F_HW_I2C u8g2(U8G2_R0, /* reset=*/ U8X8_PIN_NONE);

unsigned long seconds = 0;

void setup() {
  Wire.begin();
  u8g2.begin();
}

void loop() {
  u8g2.clearBuffer();

  // Header text
  u8g2.setFont(u8g2_font_6x10_tr);
  u8g2.drawStr(0, 10, "0.91\" OLED Demo");

  // Separator line
  u8g2.drawHLine(0, 14, 128);

  // Uptime counter
  u8g2.drawStr(0, 28, "Uptime: ");
  u8g2.setCursor(50, 28);
  u8g2.print(seconds);
  u8g2.print(" s");

  u8g2.sendBuffer();

  seconds++;
  delay(1000);
}

Bibliothèques nécessaires : U8g2 2.36.19

Wiring diagram and example code generated by Codey.online — https://www.codey.online

Écran OLED 0.91 Inch avec ESP32

Cet exemple connecte un écran OLED I2C 128x32 de 0.91-inch à l'ESP32. Le sketch initialise l'écran et affiche un message de bienvenue ainsi qu'un compteur de temps de fonctionnement mis à jour. Connectez l'écran aux broches I2C par défaut de l'ESP32 (GPIO 21 pour SDA et GPIO 22 pour SCL), alimenté en 3.3V.

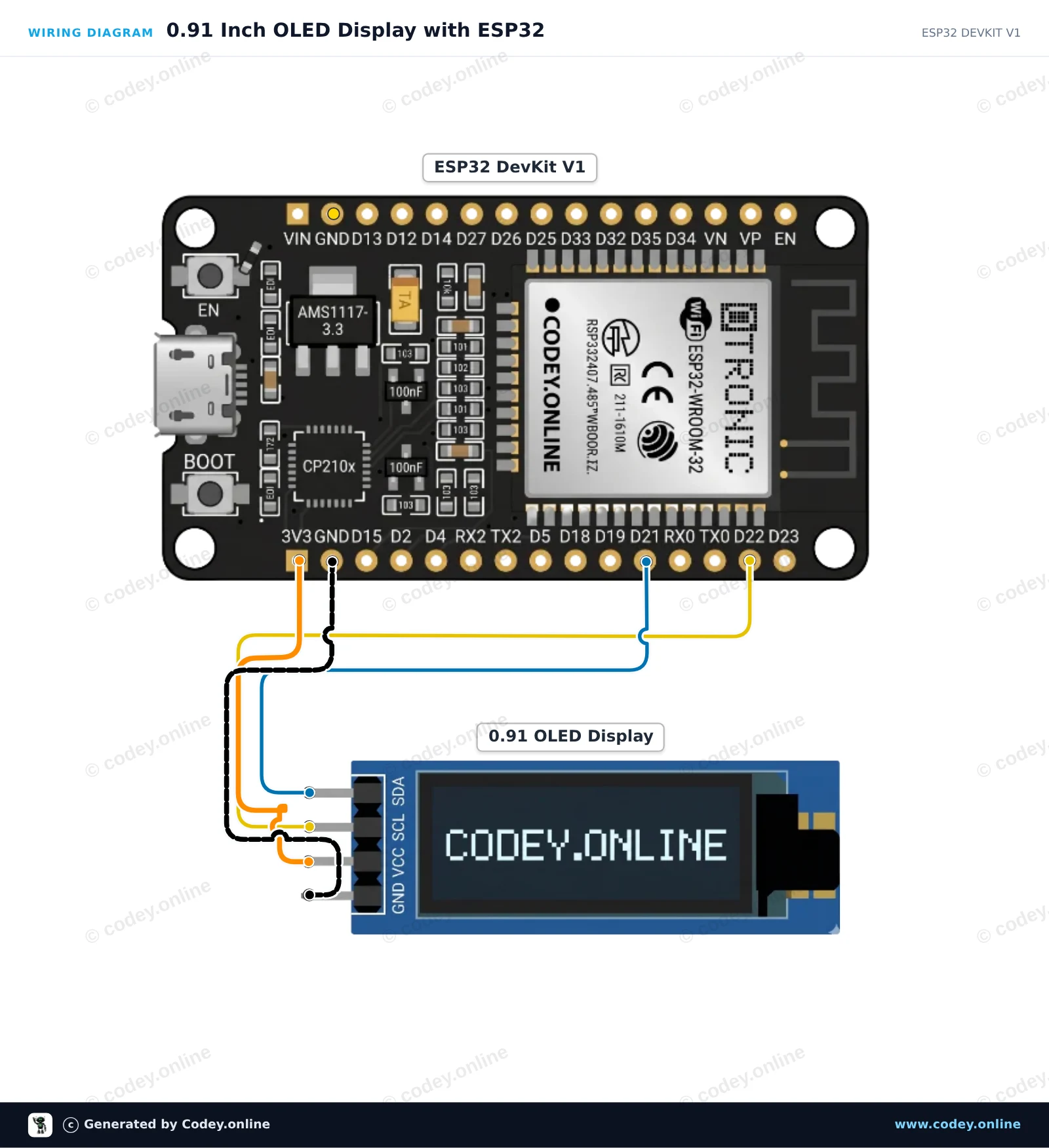

Schéma de câblage : Mini écran OLED bleu 0.91 inch 128x32 I2C sur un ESP32 DevKit V1
Schéma de câblage · Cliquez pour agrandir

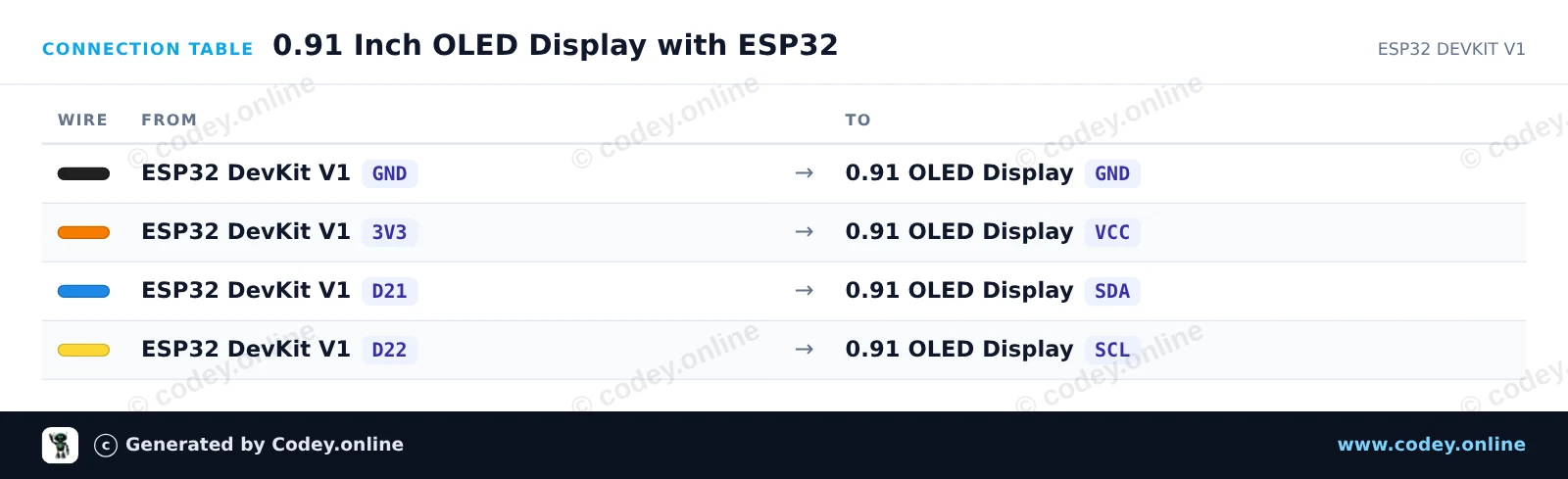

Tableau de câblage : Mini écran OLED bleu 0.91 inch 128x32 I2C sur un ESP32 DevKit V1
Tableau de câblage · Cliquez pour agrandir
0_91_Inch_OLED_Display_with_ESP32.ino · compilé et testé
/*
 * ==================================================================
 *  Generated by Codey.online  —  https://www.codey.online
 * ==================================================================
 *  Project   : 0.91 Inch OLED Display with ESP32
 *  Board     : ESP32 DEVKIT V1 (esp32:esp32:esp32doit-devkit-v1)
 *  Parts     : OLED Display 0.91 inch
 *  Libraries : Adafruit SSD1306 2.5.16, Adafruit GFX Library 1.12.6
 *
 *  Codey Online is an AI-powered browser IDE for Arduino and ESP32.
 *  Describe your project and Codey writes the code, draws the wiring
 *  diagram and uploads it to your board, straight from the browser.
 *  This code is free to use, modify and share, without warranty.
 * ==================================================================
 */

#include <Wire.h>
#include <Adafruit_GFX.h>
#include <Adafruit_SSD1306.h>

#define SCREEN_WIDTH 128
#define SCREEN_HEIGHT 32
#define OLED_RESET -1
#define SCREEN_ADDRESS 0x3C

Adafruit_SSD1306 display(SCREEN_WIDTH, SCREEN_HEIGHT, &Wire, OLED_RESET);

int counter = 0;

void setup() {
  Serial.begin(115200);

  // Initialize I2C on ESP32 default pins (SDA=21, SCL=22)
  Wire.begin(21, 22);

  if (!display.begin(SSD1306_SWITCHCAPVCC, SCREEN_ADDRESS)) {
    Serial.println(F("SSD1306 allocation failed"));
    for (;;); // Halt if OLED not found
  }

  display.clearDisplay();
  display.setTextSize(1);
  display.setTextColor(SSD1306_WHITE);
  display.setCursor(0, 0);
  display.println(F("ESP32 OLED Demo"));
  display.display();
  delay(1500);
}

void loop() {
  display.clearDisplay();

  display.setTextSize(1);
  display.setTextColor(SSD1306_WHITE);
  display.setCursor(0, 0);
  display.println(F("ESP32 DevKit V1"));

  display.setTextSize(2);
  display.setCursor(0, 14);
  display.print(F("Count: "));
  display.println(counter);

  display.display();

  Serial.print(F("Current count: "));
  Serial.println(counter);

  counter++;
  delay(1000);
}

Bibliothèques nécessaires : Adafruit SSD1306 2.5.16, Adafruit GFX Library 1.12.6

Wiring diagram and example code generated by Codey.online — https://www.codey.online

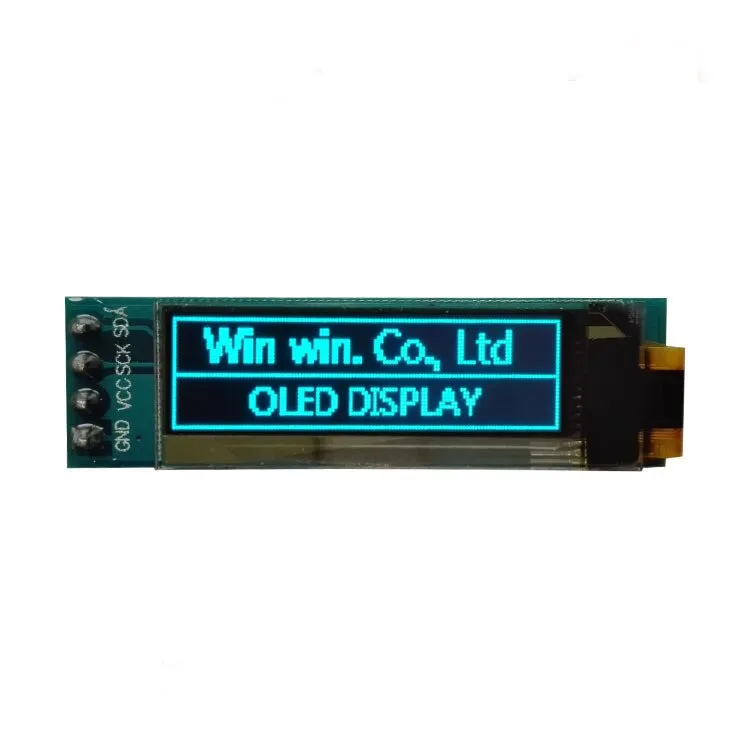

Mini écran OLED bleu 0.91 inch 128x32 I2C

Mini écran OLED de 0,91 inch. Image d’une grande netteté avec une résolution de 128x32 pixels.

Fonctionne sur une alimentation de 3v-5v. Idéal pour les projets Arduino ou ESP32 / ESP8266.

Les dimensions de cette carte sont de seulement 38 x 12 x 3,3mm.

DATASHEET SSD1306

Dimensions
Longueur: 3,8cm
Largeur: 1,2cm
Hauteur: 0,33cm

  • Écran OLED
  • 0,91 pouce
  • Interface I2C
  • Écran bleu

Pourquoi choisir ce produit ?

  • Image nette – 128x32 pixels pour un affichage clair.
  • Fonctionne avec Arduino – Idéal pour les projets Arduino.
  • Convient pour ESP32 – Également compatible avec ESP32/ESP8266.
  • Carte compacte – Seulement 38 x 12 x 3,3 mm.
Spécifications
Dimensions38 x 12 x 3,3 mm
Largeur1,2 cm
Couleurbleu
Résolution128x32 pixels
Convient pourArduino ou ESP32 / ESP8266
Longueur3,8 cm
Tension d'alimentation3v-5v
Hauteur0,33 cm
Format0,91 inch
IC piloteSSD1306
